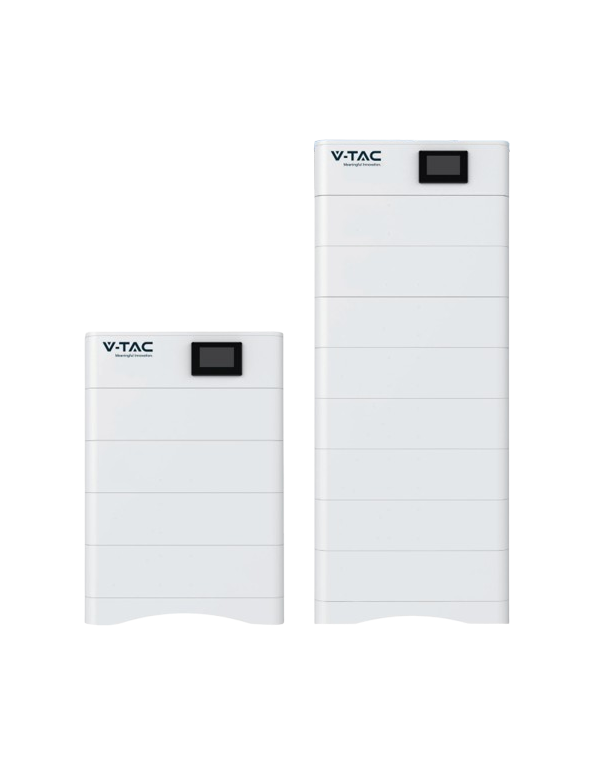

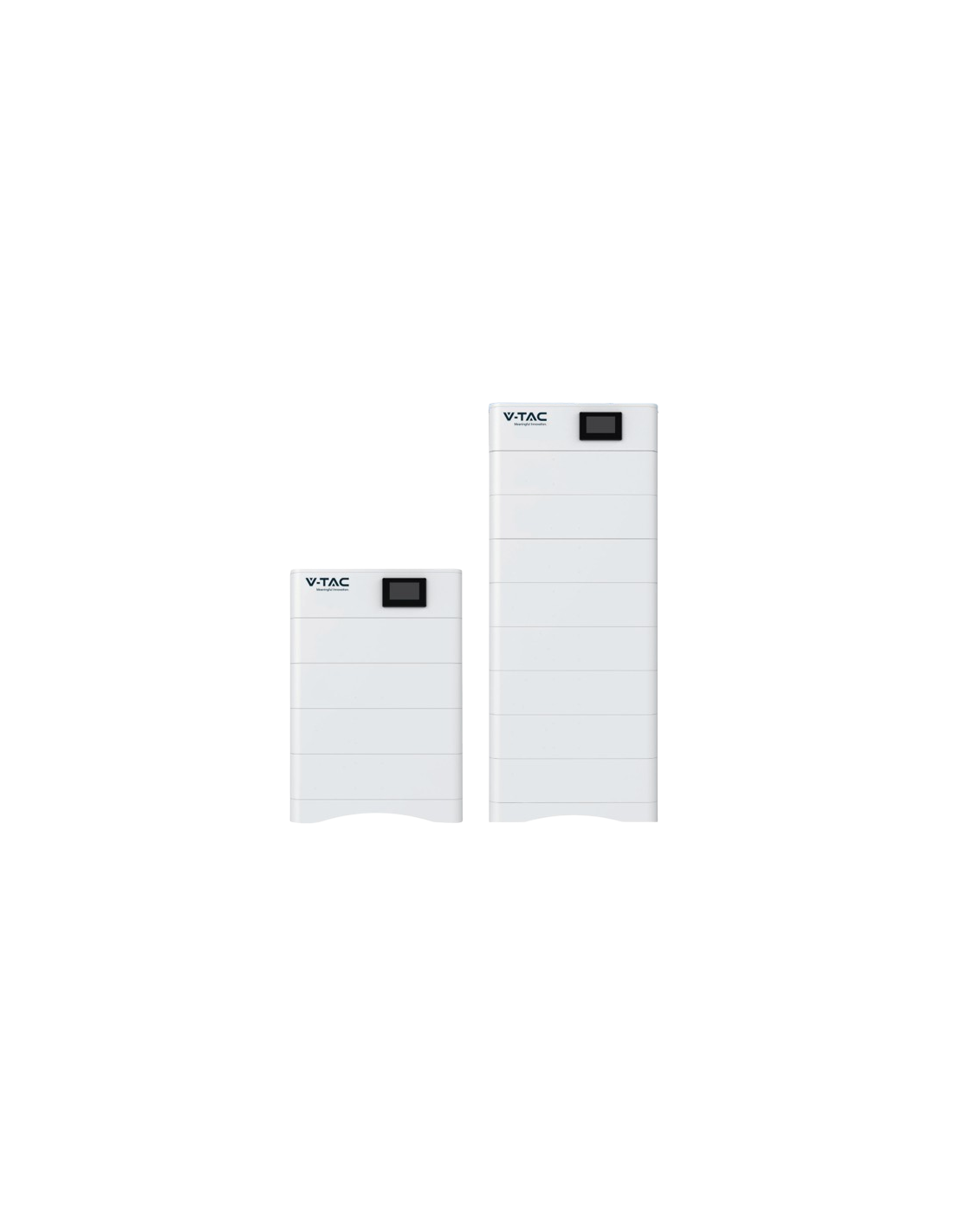

V-TAC LiFePO4 Stackable Battery System 30.72kWh (5.12 × 6)

In a world where clean energy and energy independence are increasingly essential, the V-TAC LiFePO4 30.72kWh stackable battery system presents itself as the ideal solution for those seeking performance, safety, and scalability in their solar installation.

Comprised of six 5.12kWh modules, the system reaches a nominal capacity of 30.72kWh and a usable capacity of 24.58kWh, adapting to residential, commercial, and industrial environments.

Its lithium iron phosphate (LiFePO4) technology offers high energy density, greater thermal and chemical stability, and a lifespan exceeding 6,000 cycles. The stackable modular design facilitates installation and expansion while occupying minimal space.

The system integrates protection against overcharge, overdischarge, short circuit, overtemperature, and overcurrent, along with automatic cell balancing and soft start. CAN protocol communication ensures easy integration with inverters from brands such as Deye, GoodWe, Solis, Sofar, Megarevo, and others.

It also includes real-time monitoring of voltages, currents, temperature, and state of charge (SOC), managed by an intelligent algorithm that maximizes performance and extends lifespan.

Technical specifications:

• Nominal capacity: 30.72kWh

• Usable capacity: 24.58kWh

• Nominal voltage: 307.2V

• Recommended charge/discharge current: 40A

• Dimensions: 590 x 420 x 1151 mm

• Total weight: 298.2 kg

• Operating temperature: charge 0 to 45°C, discharge -10 to 55°C

• Protection: IP65

• Lifecycle: ≥6000 cycles (EOL 70%)

Frequently Asked Questions:

• Is it compatible with my current inverter?
  Yes, it is compatible with Deye, GoodWe, Solis, Sofar, Megarevo, KOYOE, Afore, and ATSS.

• How long does the battery last?
  It offers more than 6,000 cycles, equivalent to over 15 years of normal use.

• What protections does it include?
  Overcharge, overdischarge, short circuit, overtemperature, overcurrent, soft start, and cell balancing.

• Can I expand the system?
  Yes, up to 40.96kWh with additional modules.

• What maintenance does it require?
  Minimal, thanks to remote monitoring and online updates.

• How much space does it take?
  Only 590 x 420 x 1151 mm thanks to its vertical stackable design.
