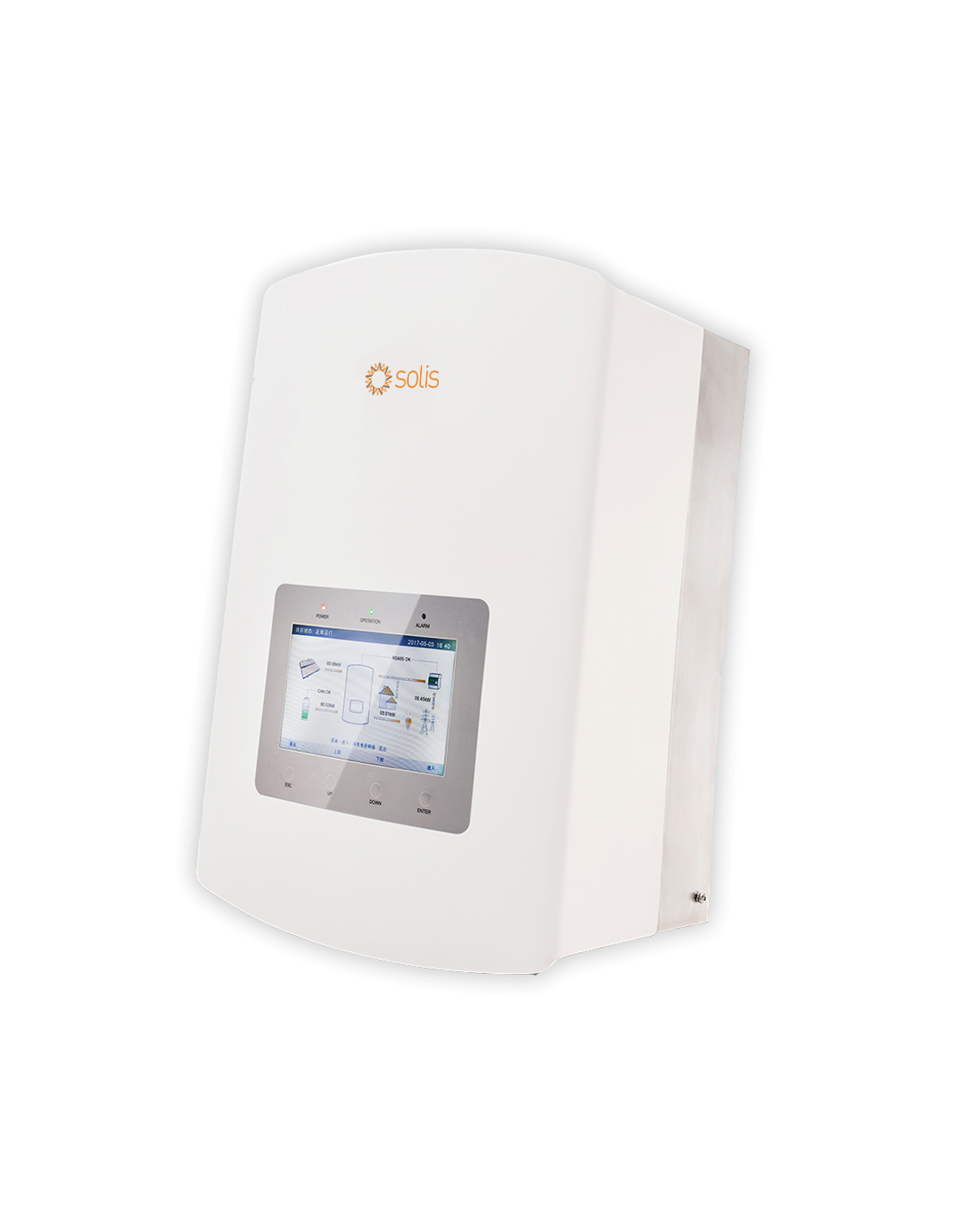

Solis EH1P5K-L 5kW-48V Hybrid Solar Inverter
EH1P5K-L
€1,169.01
Tax included
In stock
Solis 5kW 48V single-phase hybrid solar inverter of the EH-L series. INCLUDING BACK UP + ENERGY METER
Solis 5000W single-phase grid-connected hybrid solar inverter allows connection of 48V lead-acid or lithium batteries. With an efficiency of over 98.8% and 2 MPPT's, it allows you to connect up to 8000W of solar power with a maximum input voltage of 600V.
The Solis series of single-phase hybrid inverters are a highly recommended option for both on-grid and off-grid storage solutions, featuring an integrated BMS system to increase battery reliability. They are protected against short circuits, overloads and high temperatures.
They are guaranteed for 5 years and are certified within the international framework.
The Solis EH-L hybrid solar inverters in different power ratings offer many advantages and have a very flexible technology for today's residential installations:
- Uninterruptible power supply.
- Back-up power of 5kW to support larger loads.
- Grid-safe peak and switchover capabilities.
- Multiple operating modes to maximise self-consumption and increase profit.
- increase profit.
- Higher charge-discharge efficiency, improving economic benefits.
- Compatible with lithium and lead-acid batteries, greater variety in different markets.
- Fanless design with long service life.
- Intelligent BMS function for improved battery reliability.
- Fully intelligent 24-hour power management, real-time understanding of PV plant status.
- Remote monitoring and updating function, making digital plant maintenance at your fingertips.
Technical characteristics of the inverter:
|
Model |
I'M NOT GOING ANYWHERE |
|
DC current input (photovoltaic side) |
|
|
Maximum input power (W)p) |
8000 |
|
Maximum input voltage (V) |
600 |
|
Rated voltage (V) |
330 |
|
Starting voltage (V) |
120 |
|
The voltage range MPPT (V) |
90-520 |
|
Maximum input current (A) |
11 |
|
Maximum short-circuit current (A) |
17,2 |
|
MPPTs |
2 |
|
Battery |
|
|
Kind of |
Lithium or Lead Acid |
|
Voltage range (V) |
42-58 |
|
Capacity (Ah) |
50-2000 |
|
Maximum load-discharge current (A) |
100 |
|
Maximum load power (W) |
5000 |
|
Output current AC (storage) |
|
|
Rated power output (VA) |
5000 |
|
Peak power output (VA) |
6000 |
|
Rated output voltage (V) |
220/230 |
|
Rated frequency (Hz) |
50/60 |
|
Rated power output (A) |
22 |
|
Output AC power supply |
|
|
Rated power output (VA) |
5000 |
|
Peak power output (VA) |
5500 |
|
Maximum power output (A) |
23,9 |
|
General features |
|
|
Dimensions (mm) |
333 by 505 by 249 |
|
Weight (kg) |
17 |
|
Communication |
RS485, optional: Wifi, GPRS |
|
Refrigeration |
Natural convection |
- Power (kW)
- 3 - 5.9
- Phase Type
- Single phase
- Max Current Input (A)
- 15 - 15.99
- Compatibility list
- BYD LVL
Dyness BX51100
Dyness Power Box
LG RESU
Pylontech Force L2
Pylontech US2000C / US3000C / US5000
Pylontech US3000C
Pylontech US5000 / Force L2
