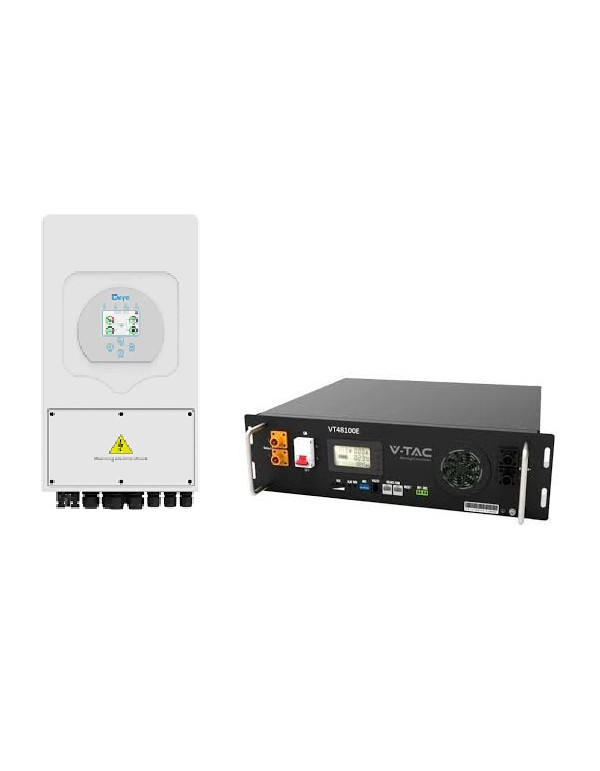

DEYE Hybrid Solar Kit 6kW with 2 V-TAC Lithium Batteries 5.12kWh

1. DEYE 6kW Hybrid Solar Inverter

• Power and Performance:
• Maximum DC power: 7800W.
• Conversion efficiency: 97.6%, with MPPT tracking of 99.9%.
• Supports lead-acid and lithium batteries, with charge and discharge currents up to 135A.
• Operational Flexibility: Compatible with on-grid and off-grid systems.
• Allows parallel operation with up to 16 units, ideal for growing projects.
• Advanced configuration of up to 6 charging and discharging periods per day.
• Design and Safety: LCD colour touch screen for easy monitoring and intuitive control.
• IP65 resistance, suitable for outdoor installation and adverse weather conditions.
• International quality and safety certifications.

2. 2 Lithium V-TAC 5.12kWh Batteries

• Cycle Life: Over 6000 cycles at 80% depth of discharge (DOD).
• Total capacity: 10.24kWh (two batteries of 5.12kWh each).
• LiFePO4 technology ensures greater thermal stability and durability.
• Modular and Expandable Design: Easy parallel connection for greater storage capacity.
• Compact dimensions of each battery: 445 x 400 x 130 mm; weight 41kg per unit.
• Rack mountable to optimise space.
• Advanced Safety: Built-in Battery Management System (BMS) monitors temperature, voltage and current.
• Overload, overcurrent and short-circuit protection.

Kit Advantages

• Increased Storage Capacity: With 10.24kWh of total capacity, this kit is ideal for applications with high energy requirements.
• Energy Independence: Reduce your dependence on the grid with an efficient and reliable solution.
• Flexibility and Scalability: Compatible with existing solar systems and adaptable to your future needs.
• Durability and Safety: High quality components with international certifications.
• Efficiency and Sustainability: Optimise the use of solar energy while reducing your environmental impact.

Frequently Asked Questions (FAQ)

1. What does the kit include?

The kit includes a DEYE 6kW single-phase hybrid inverter and two V-TAC lithium batteries of 5.12kWh each. Solar panels and additional accessories are not included.

2. What is the total storage capacity?

The kit offers a total storage capacity of 10.24kWh, ideal for high energy consumption applications.

3. Is it suitable for areas without access to the grid?

Yes, the system is compatible with off-grid configurations, ensuring power supply in remote locations.

4. Can more batteries be added?

Yes, the system supports parallel connection of more batteries to increase storage capacity.

5. What kind of maintenance is required?

The system requires minimal maintenance, such as inspection of connections and performance monitoring through integrated tools.

6. What happens on cloudy or rainy days?

The inverter uses the energy stored in the batteries to ensure continuous supply, and can be supplemented by additional sources such as generators.

Conclusion

The DEYE 6kW Hybrid Solar Kit with 2 V-TAC 5.12kWh Lithium Batteries is a robust and reliable solution that combines advanced technology and flexibility to suit a variety of energy needs. Ideal for residential and commercial applications, this system guarantees efficiency, savings and sustainability.
