Lithium batteries

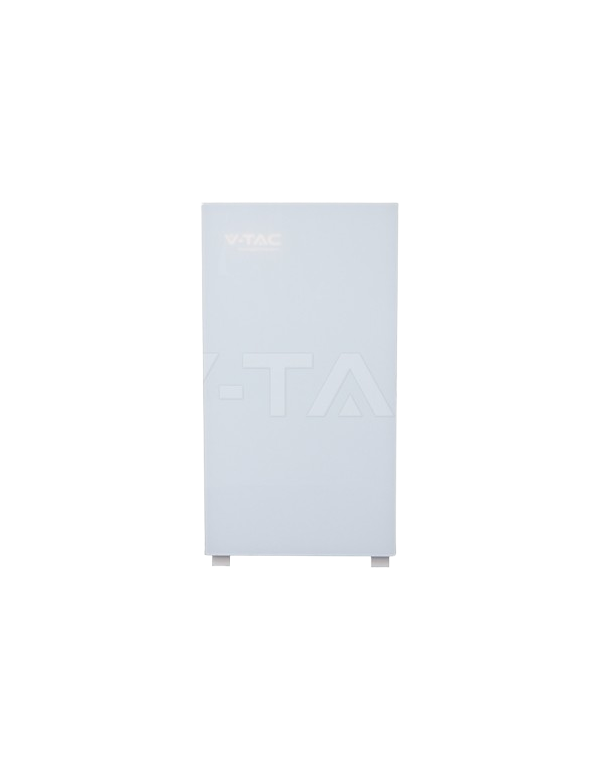

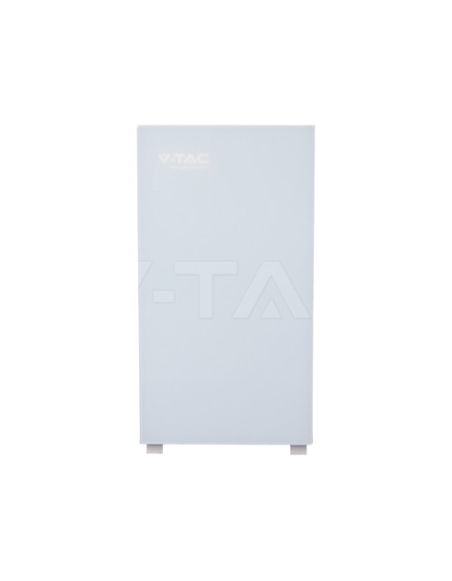

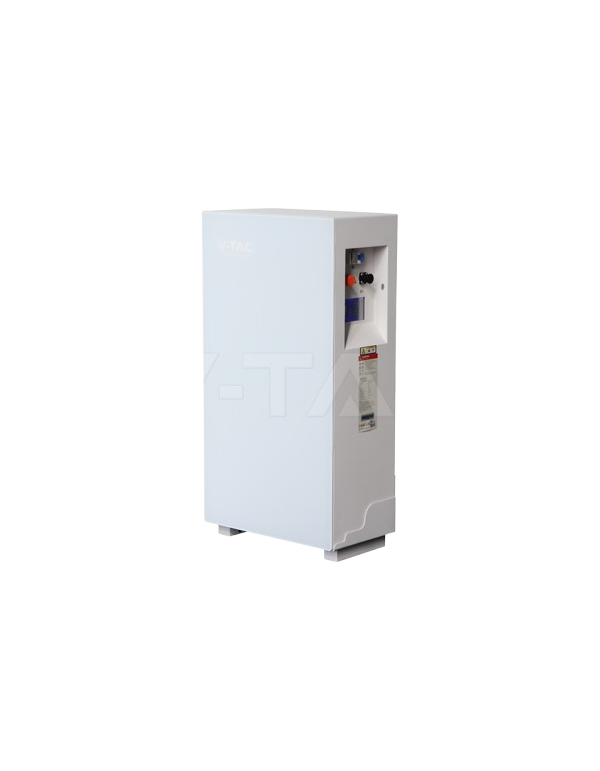

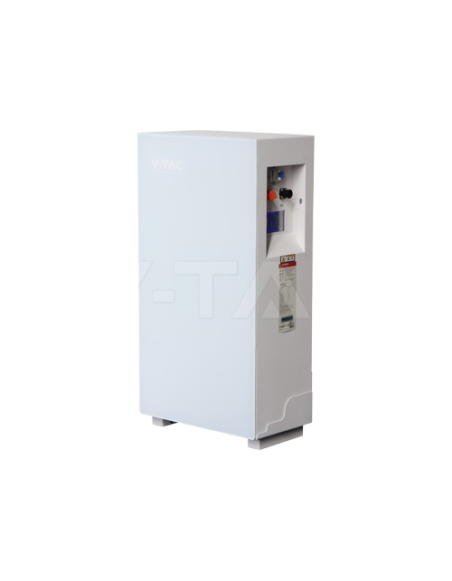

Lithium Battery V-TAC 10.24KWh - VT-12040 Mural / Floor
VT-10240W
€1,335.71
Tax included
The 10,24kWh V-Tac Battery (VT-12040) It is the most robust storage solution in its range, designed for users seeking real autonomy without compromising space. With a Capacity of 200Ah at 51.2V and cells Lifepo4, it offers a Continuous entry current of 100A and one 120A DC, allowing great consumption simultaneously. Your certified useful life is More than 5000 cycles (less than 0.5c), with a Autodescarga less than 3% monthly. Admits a wide range of working temperature -20 ° C to 70 ° C (Recommended range 10 ° C-45 ° C). It is compatible with the main manufacturers of inverters hybrid of the market by means of communication CAN or RS485. Its design allows installation in wall or floor, with certification CE and ROHS. Discover the whole range in Tienda Solar.
Battery Benefits V-TAC VT-12040
The V-TAC VT-12040 is the response to high density storage needs in the residential and commercial sector. Store your energy solar panels It has never been so efficient. Thanks to its great capacity of 10,24kwh, This unit allows you to manage solar surpluses intelligently, ensuring that your home runs with clean energy even overnight or on cloudy days.
Technology LIFEPO4: Performance and Longevity
On Tienda Solar We bet on the technology of Iron and lithium phosphate (LifePO4) for being the most stable in the market. The VT-12040 is not only secure, but offers minimal degradation, with a certified useful life of More than 5000 cycles (at a regime less than 0.5c) and a depth of discharge (DoD) Recommended superior to 80%.
Verified compatibility with the main manufacturers
One of the great strengths of the VT-12040 is its wide compatibility, verified by the manufacturer with the following inverters hybrid: Must, SMA, Deye (model SUN-6K-SG03LP1-EU), Invt (6KW), Megarevo, Victron Energy, Afore (Hybrid 6KW), SRNE, Growatt (SPF5000 ES) and Voltronic Power (WP-2P (LV) 6KW). Communication is carried out by protocol Can (in most brands) or Rs485 (in Srne, Growatt and Voltronic Power), running in mode On-grid / off-grid with wall installation, and allowing you to connect up 4 units simultaneously with these inverters.
Versatile installation and scalability
Unlike voluminous industrial batteries, the VT-12040 has a design that allows both installation on wall like standing on the floor, adapting to the preferences of each installation and releasing useful space in garages or technical rooms. If your storage needs increase, you can complement the system with lithium batteries Additional of the range.
Smart BMS and high current capacity
The BMS V-TAC's own is the brain that ensures that each cell works in optimal conditions, supporting a Continuous entry current of 100A and one 120A DC, Ideal for installations with high consumption or specific peaks. In addition, its Autodescarga less than 3% monthly ensures constant energy availability, complementing any hybrid Inverter of the store.
Wide thermal range
With a range of operating temperature -20 ° C to 70 ° C (Recommended between 10 ° C and 45 ° C To maximize the useful life), this battery is ready to operate in a wide variety of climates and locations. If you have doubts about the sizing of your installation, see the guides of the Blog Tienda Solar.
Detailed technical characteristics
- Model: Vt-12040
- SKU: 11447 (EAN 3800157692335)
- Type of battery: Lifepo4
- Storage capacity: 10.240wh to 51,2v
- Standard capacity: 200Ah / 51.2V
- Continuous entry current: 100a
- Duty output current: 120a
- Standard load voltage: 57,6v - 60V
- Cutting voltage: 36v - 48V
- Autodescarga (25 ° C):
- Depth of discharge (DOD): > 80%
- Operating temperature range: -20 ° C to 70 ° C (recommended: 10 ° C to 45 ° C)
- Useful life (cycles): > 5000 cycles (
- Download Rate (C-Rate):
- Dimensions (an × prof × al): 660 × 855 × 360 mm
- Weight: 89,91 kg
- Installation: wall or floor
- Communication: CAN / RS485 (according to inverter)
- Verified multiple connection: up to 4 units
- Certifications: CE, RoHS
- Warranty: 5 years
Inverters Verified compatible:
- Must - CAN communication
- SMA - CAN communication
- Deye (SUN-6K-SG03LP1-EU) - CAN communication
- Invt (6KW) - CAN communication
- Megarevo - CAN communication
- Victron Energy - CAN communication
- Afore (Hybrid 6KW) - CAN communication
- Srne - Communication RS485
- Growatt (SPF5000 ES) - Communication RS485
- Voltronic Power (WP-2P (LV) 6KW) - Communication RS485
Frequently Asked Questions (FAQ)
1. Is this battery compatible with my inverter current?
The VT-12040 has been tested and verified with inverters of brands Deye, Victron, SMA, Growatt, Megarevo, Invt, Aman, Must, Srne and Voltronic Power. We recommend consulting with our technical team in Tienda Solar The exact compatibility with your specific model of hybrid Inverter.
2. What communication protocol does it use?
Depending on the manufacturer of the inverter: Most brands (Deye, SMA, Must, Invt, Megarevo, Victron, Afore) use Can, while Srne, Growatt and Voltronic Power used Rs485.
3. How many units can I connect simultaneously?
With the inverters Verified in the compatibility list, can be connected until 4 units Simultaneously to expand the total capacity of the system.
4. How much space do I need to install it?
Its dimensions of 660 x 855 x 360 mm and its possibility of installation both in wall They allow adapting the location to the features of your garage or technical room.
5. How much do you self-discharge if I do not use it for a while?
Your self-carrier rate is lower than 3% monthly At 25 ° C, which makes it very reliable for supporting systems or seasonal use.
6. What guarantee does this battery have?
It has a guarantee of 5 years, backed by certifications CE and ROHS that prove compliance with European quality and safety standards.
- Battery Voltage (V)
- + 48
- Battery Energy (kWh)
- 6+
