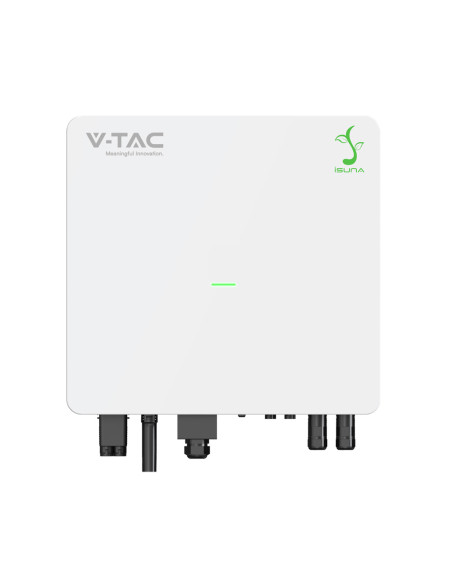

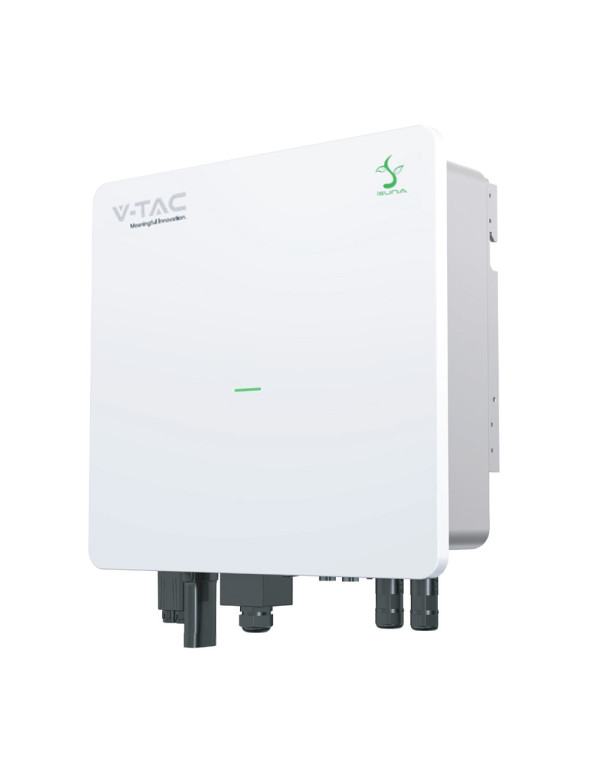

Hybrid solar inverter rated at 6kWac for connection to low voltage batteries (48V). With an output power of up to 6000W AC and the ability to connect up to 9000W of photovoltaic panels, this model is compatible with 48V V TAC batteries. It is an excellent choice for charging solar batteries from both solar power and the grid. Its 2 MPPT's allow you to optimise the solar energy produced, while its capacity of up to 18A of current allows the connection of modern high current panels. In addition, it features overcurrent protection, overload protection, earth fault monitoring, DC injection monitoring, RCD protection and high temperature protection. This inverter can be operated in both grid-connected and stand-alone mode and comes with a 10-year warranty.

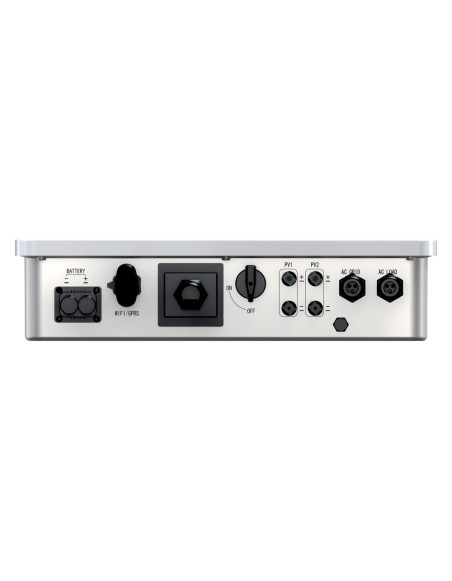

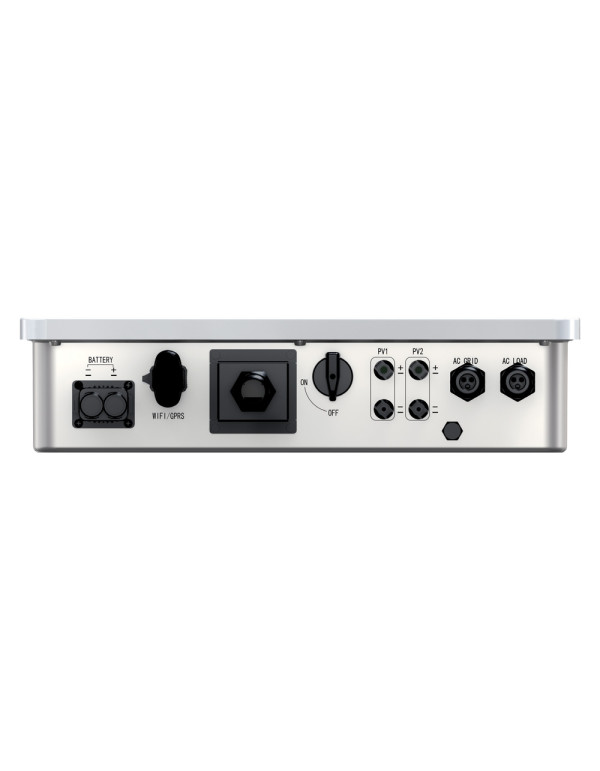

Solar inverter with 2 MPPT's with input prepared to connect 2 strings, with a maximum input current of 18A per string, with an operating voltage per MPPT of between 80 to 550V. This efficient inverter allows for easy installation in both residential and industrial installations. At the same time, it is compatible with the Chint-DDSU666-H wattmeter, which allows to control the power balance between the energy demanded by the home or industry and the photovoltaic production, while ensuring that we do not discharge to the grid if we wish to do so.
The advantages offered by this inverter are as follows:
- High efficiency inverter
- Wide working voltage range: 80 to 550 V
- Compatible with most brands on the market
- IP65 protection: which makes it dust-tight and liquid tight
- Supports both mains connection and stand-alone operation
- Multiple batteries can be connected in parallel
- Allows up to 15 units to be connected in parallel
- Allows storage of energy from a diesel generator
- Intelligent monitoring
- Adaptability to cater for changes in consumption
Technical data:
- Model: Grid In/Off Hybrid Inverter V TAC 6kW
- Rated power: 6000W
- Nominal voltage: 230V
- Maximum PV input power: 9000W
- MPPT voltage range: 80-550 V
- MPPT: 2 (1 string per MPPT)
- Maximum input current: 18/18
- Battery voltage range: 42-58 V
- Dimensions: 500*470*180 mm
- Weight: 21kg
- Ventilation: Natural
- Protection: IP65
- Power (kW)
- 6 - 9.9
- Phase Type
- Single phase
- Max Current Input (A)
- 18 - 18.99
