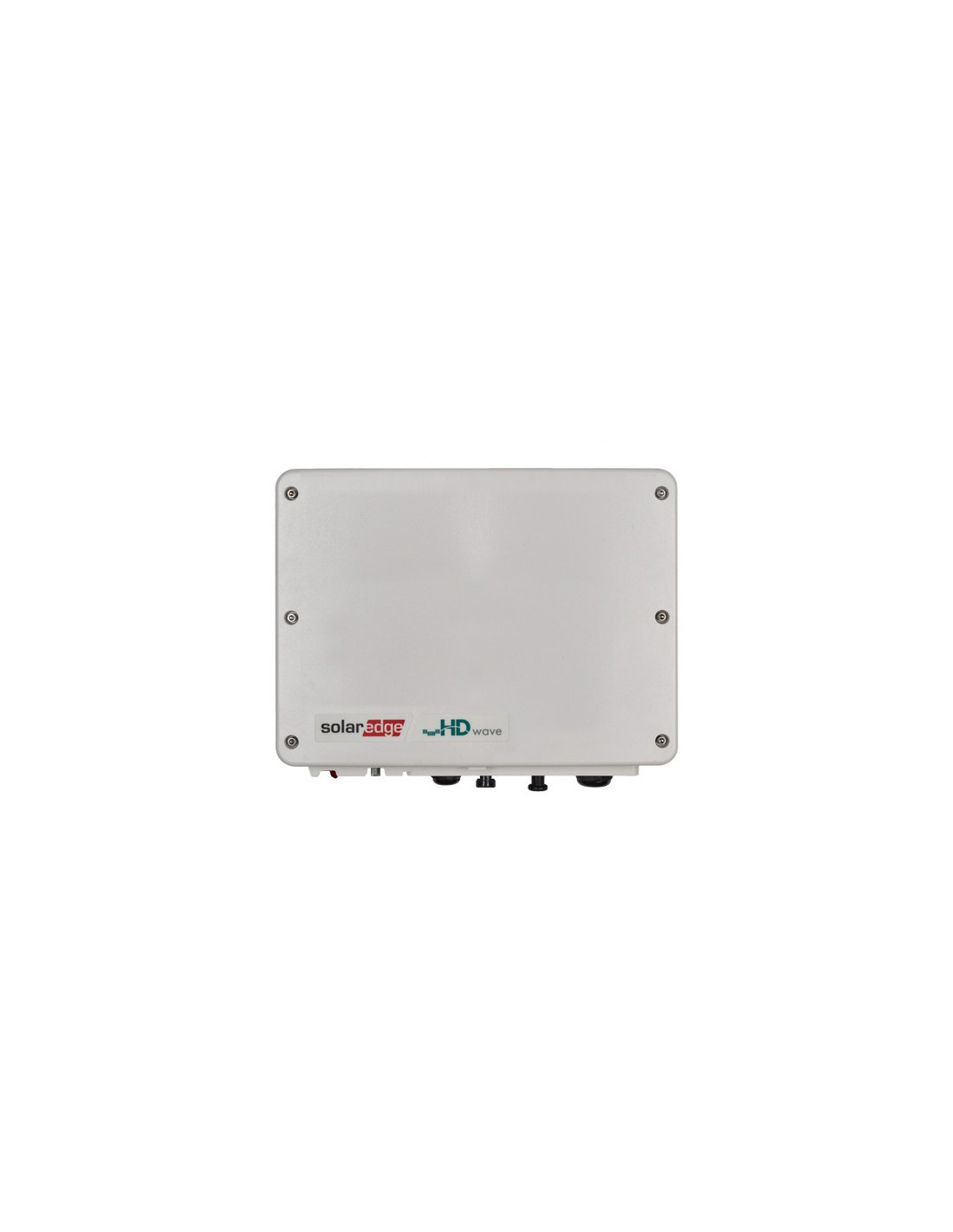

Solar inverter SolarEdge HD-Wave 4.0kW- single phase

SolarEdge 4000W single-phase inverter with SetApp configuration and HD-Wave technology. It has a maximum efficiency of 99.2% and a maximum input current of 11.5 A. HD-Wave inverters stand out for their small and lightweight design, high efficiency and safety.

This inverter has received the Intersolar Award 2016 and Edison Award 2018. What distinguishes it from other inverters is that it handles maximum power point tracking and voltage management separately for each solar module, so the inverter is only responsible for the DC to AC inversion, making it more cost-effective, simple and reliable. Specially designed to operate with SolarEdge optimisers.

12-25 year warranty.

SolarEdge HD-Wave solar inverters offer the following features:

  • - Specifically designed to work with SolarEdge Power Optimizers
  • - Industry leading efficiency with 200% DC oversizing
  • - Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
  • - Seamless wireless connectivity with system devices such as the SolarEdge Energy Bank battery, via optional SolarEdge Energy Net platform
  • - Extremely compact, lightweight and easy to install
  • - Built-in module-level monitoring
  • - Suitable for outdoor and indoor installation
  • - Fixed voltage inverter for longer strings
  • - Advanced safety feature - integrated arc fault protection

Datasheet:

Model

SE4000H

OUTPUT



Rated AC Power Output

4000 W

Maximum AC Power Output

4000 VA

AC Output Voltage (Nominal)

220/230 Vac

AC Output Voltage Range

184 - 264.5 Vac

AC Frequency (Nominal)

50/60 ± 5 Hz

Maximum Continuous Output Current

18.5 A

Power Factor

1, adjustable -0.9 to 0.9

Utility Monitoring, Islanding Protection, Configurable Power Factor, Country Configurable Thresholds

Yes

INPUT



Maximum DC Power

8000 W

Transformer-less, Ungrounded

Yes

Maximum Input Voltage

480 Vdc

Nominal DC Input Voltage

380  Vdc

Maximum Input Current

11.5 Adc

Reverse-Polarity Protection

Yes

Ground-Fault Isolation Detection

                600 kΩ Sensitivity

Maximum Inverter Efficiency

99.2 %

European Weighted Efficiency

98.8 %

STANDARD COMPLIANCE



Safety

IEC-62109-1/2

Grid Connection Standards

IEC61727, IEC62116, EN 50438, VDE-AR-N-4105, VDE 0126-1-1, UTE_C_15-712, G98, G99, CEI-021, ÖNORM, TF3.2.1, C10-11, NRS 097-2-1

Electromagnetic Compatibility (EMC)

EN/IEC 61000-6-1, EN/IEC 61000-6-2, EN/IEC 61000-6-3, EN/IEC 61000-6-4, EN 55011, FCC Part 15, EN/IEC 61000-3-2, EN/IEC 61000-3-3, EN/IEC 61000-3-11, EN/IEC 61000-3-12

INSTALLATION SPECIFICATIONS



AC Output – Supported Cable Diameter

9-16 mm

AC - Supported Wire Cross Section

1-13 mm^2

DC Input (PV)

2 x MC4

Dimensions (H x W x D)

280 x 370 x 142 mm

Noise

< 25 dBA

Weight

9 kg

Cooling

Natural Convection

Operating Temperature Range

-40 to +60 C

Protection Rating

IP65 — Outdoor and Indoor

SE4000H-RW000BNN4

Data sheet

Power (kW)
3 - 5.9
Phase Type
Single phase
Max Current Input (A)
11 - 11.99
