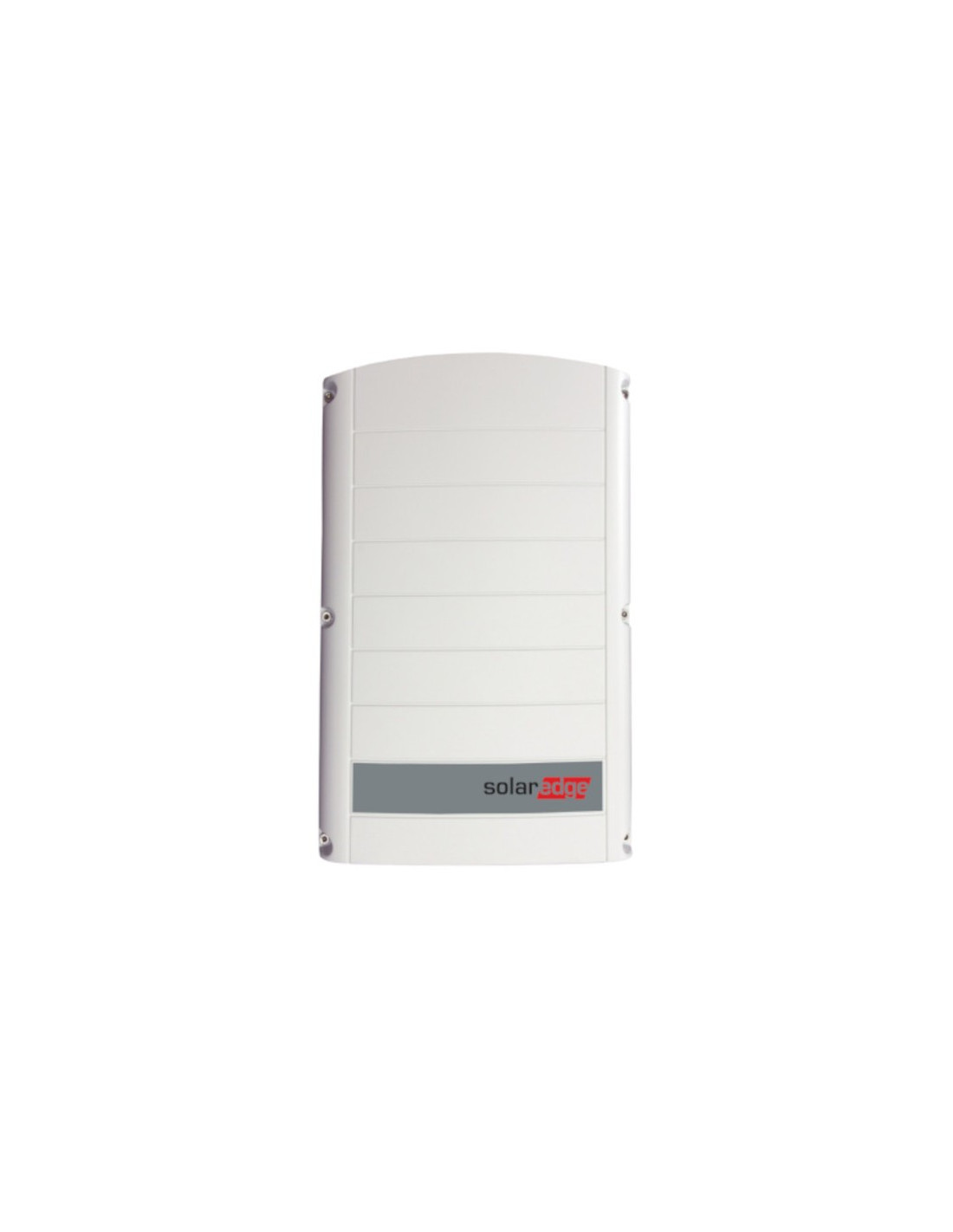

Solar inverter SolarEdge SE25K 25kW - three phase
Solar inverter SolarEdge SE25K 25kW - three phase

Solar inverter SolarEdge SE25K 25kW - three phase

SE25K-RW00IBNM4
€2,225.30
Tax included

SolarEdge 25000W three-phase inverter with SetApp configuration. It has an efficiency of 98% and a maximum input current of 36,325 A. This group of inverters stands out for its high power, lightness and efficiency.

The inverter maximises solar energy harvesting by combining digital control technology with an efficient power conversion architecture. The fixed voltage technology ensures that the inverter is always operating at an optimal input voltage, regardless of the number of modules in a string or environmental conditions. Inverter monitoring receiver data and power optimiser performance data from each solar array can be transmitted to the web.

12-25 year warranty.



SolarEdge SE three-phase solar inverters are characterised by the following features:

  • - Fixed voltage inverter for superior efficiency (98.3%) and longer strings
  • - Built in module level monitoring with Ethernet, wireless or cellular communication for full system visibility
  • - Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
  • - Advanced safety features – integrated arc fault protection and optional rapid shutdown
  • - Small, lightest in class, and easy to install
  • - IP65 Outdoor and indoor installation
  • - Integrated type 2 DC Surge Protection, to better withstand lightning events
  • - Future-ready for SolarEdge energy storage solution

Datasheet:

Model

SE25K

OUTPUT



Rated AC Power Output

25000W

Maximum AC Power Output

25000VA

AC Output Voltage (Nominal)

380 / 220 ; 400 / 230 Vac

AC Output Voltage Range

304 – 437 / 176 – 253 ; 320 – 460 / 184 - 264.5 Vac

AC Frequency (Nominal)

50/60 ± 5 Hz

Maximum Continuous Output Current

36.25 A

AC Output Line Connections

3W + PE, 4W + PE

Utility Monitoring, Islanding Protection, Configurable Power Factor, Country Configurable Thresholds

Yes

INPUT



Maximum DC Power

37500 W

Transformer-less, Ungrounded

Yes

Maximum Input Voltage

1000 Vdc

Nominal DC Input Voltage

750  Vdc

Maximum Input Current

36.25  Adc

Reverse-Polarity Protection

Yes

Ground-Fault Isolation Detection

                167 kΩ Sensitivity

Maximum Inverter Efficiency

98.3 %

European Weighted Efficiency

98 %

STANDARD COMPLIANCE



Safety

IEC-62109, AS3100

Grid Connection Standards

VDE-AR-N-4105,G99,G99 (NI),AS-4777,EN50438,EN50438,CEI-021,VDE 0126-1-1,CEI-016, EN50549-1, EN50549-2,VDE-AR-N4110,TOR Erzeuger Typ,VFR 2019

Emissions

IEC61000-6-2, IEC61000-6-3 Class A, IEC61000-3-11, IEC61000-3-12

INSTALLATION SPECIFICATIONS



AC Output Gland Diameter / Wire Cross Section

Cable diameter 19-28 mm / 4 - 16 mm2

DC Input (PV)

4 MC4 pairs

Dimensions (H x W x D)

550 x 317 x 273 mm

Noise

< 62 dBA

Weight

32 kg

Cooling

Fan (user replaceable)

Operating Temperature Range

-40 to +60 C

Protection Rating

IP65 — Outdoor and Indoor
Power (kW)
20 - 29.9
Phase Type
Three-phase
Max Current Input (A)
20+
