Deye 30kW Hybrid Solar Inverter – Three-Phase, High Voltage

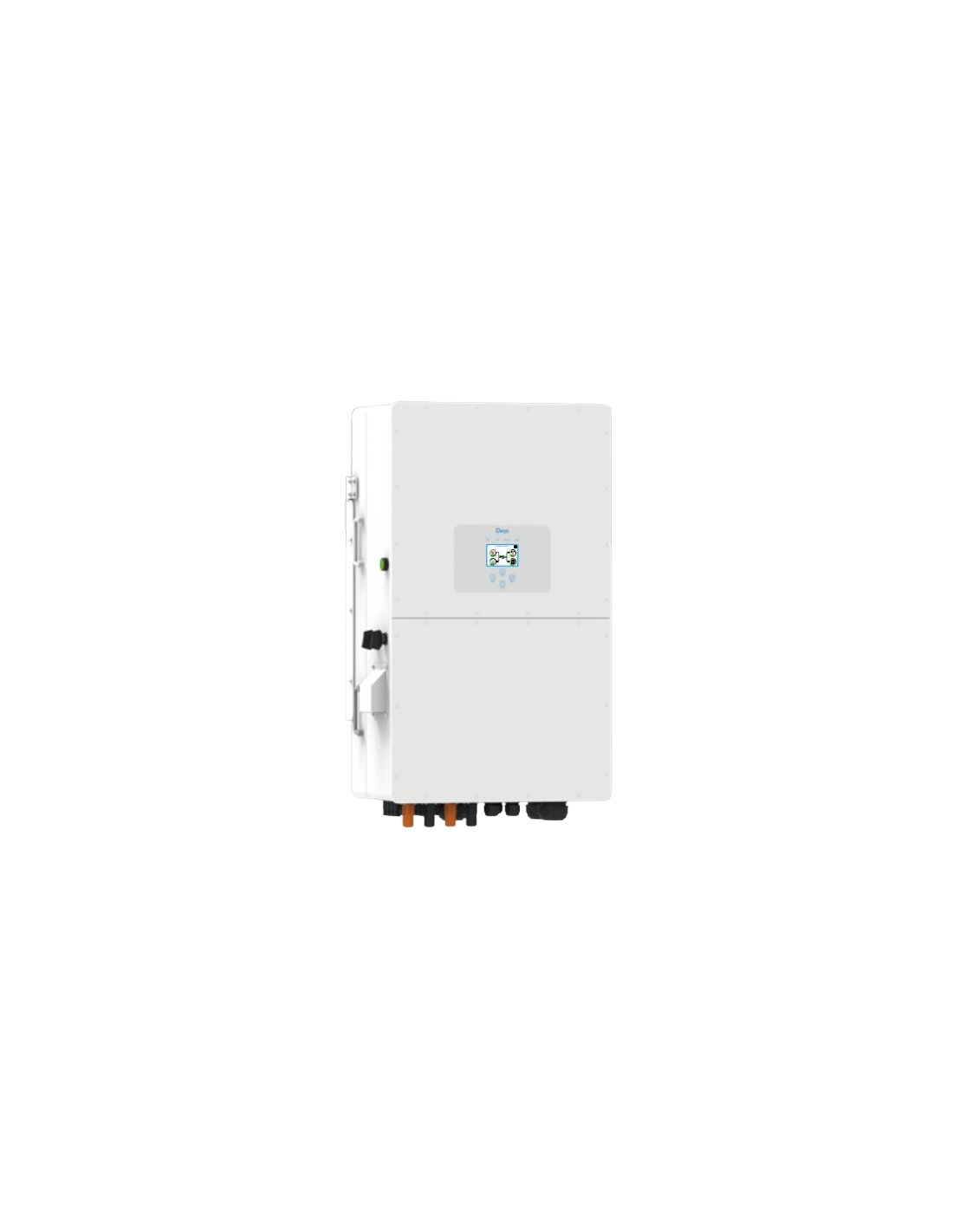

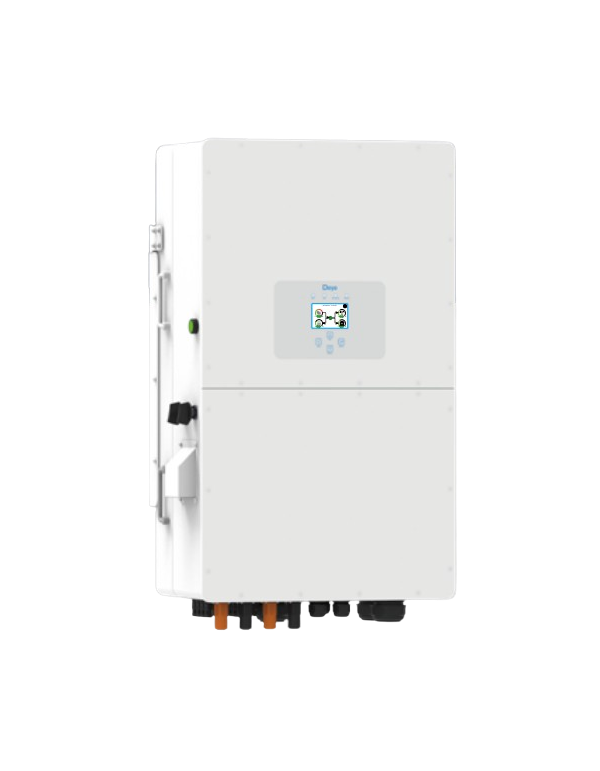

The Deye SUN-30K-SG01HP3 three-phase hybrid solar inverter is designed to maximize the performance of solar installations in demanding environments. This device combines efficiency, scalability, and advanced protection, allowing optimized management of solar energy, battery storage, and integration with diesel generators when necessary. It also supports off-grid operation.

Technical Parameters

 • Model: SUN-30K-SG01HP3-EU-BM3
 • Rated AC Power: 30,000 W
 • Maximum Apparent AC Power: 33,000 VA
 • Maximum Efficiency: 97.6%
 • MPPT Efficiency: >99%
 • Input/Output Voltage: 220/380V, 230/400V
 • Grid Frequency: 50/60 Hz (range: 45–65 Hz)
 • Battery Type: Lithium-ion
 • Battery Voltage Range: 160–800 V
 • Max Charge/Discharge Current: 100 A (50+50 A)
 • Number of Battery Inputs: 2
 • Number of MPPTs: 3
 • MPPT Voltage Range: 150–850 V
 • Max PV Input Current: 66.7 A
 • Continuous AC Passthrough: 200 A
 • Off-grid Peak Power: 1.5x rated for 10 seconds
 • Adjustable Power Factor: 0.8 leading to 0.8 lagging
 • IP Protection: IP65
 • Cooling: Smart air cooling
 • Operating Temperature: -40°C to +60°C
 • Maximum Altitude: 2000 m
 • Noise Level: ≤65 dB
 • Dimensions: 527 × 894 × 294 mm
 • Weight: 80 kg
 • Communication Interfaces: RS485 / RS232 / CAN
 • Monitoring Options: GPRS / WiFi / Bluetooth / 4G / LAN (optional)
 • Compliance Standards: IEC 61727, IEC 62116, CEI 0-21, EN 50549, RD 140, UNE 217002, VDE-AR-N 4105
 • Warranty: 10 years (depending on installation)

With a rated output of 30,000W and a maximum apparent power of 33,000VA, this solar inverter offers a peak efficiency of 97.6% and MPPT efficiency over 99%. Its architecture includes three MPPT trackers with a wide voltage range (150–850V), ensuring optimal energy harvesting even under variable irradiance and different panel orientations.

It is compatible with high-voltage lithium-ion batteries (160–800V) and supports a maximum charge/discharge current of 100A (50+50A), with two battery inputs. In addition, this solar inverter supports diesel generator connection, making it ideal for hybrid or off-grid systems.

This inverter allows up to 10 units to operate in parallel, both in on-grid and off-grid modes, facilitating the expansion of solar projects. It also supports 100% unbalanced output per phase, adapting to irregular loads without compromising performance. Six programmable periods for battery charge and discharge optimize energy use according to user needs.

In terms of safety, the inverter includes multiple protection features: DC reverse polarity, overcurrent, overvoltage, short circuit, ground fault, insulation monitoring, anti-islanding, and Type II surge protection (DC and AC). It complies with international standards such as IEC, CEI, EN, and VDE.

Its robust IP65-rated design allows for outdoor installation in extreme conditions from -40°C to +60°C (with derating above 45°C), at altitudes up to 2000m, and with a noise level below 65 dB.

Monitoring options include GPRS, WiFi, Bluetooth, 4G, and LAN (optional), and communication interfaces RS485, RS232, and CAN make it easy to integrate with energy management systems or remote platforms.

With dimensions of 527 × 894 × 294 mm and a weight of 80 kg, this inverter is easy to install and suitable for a wide range of environments. The 10-year warranty, depending on installation, provides long-term peace of mind.
