Victron SmartSolar MPPT 100/20 Solar Controller

Victron SmartSolar MPPT 100/20 Solar Controller

Victron's SmartSolar MPPT 100/20 controller is one of the most optimized regulators, both in battery charge management and in maximizing the energy extracted from the solar panel.

The dimensioning is simple, in battery systems at 12V the recommended power is 290W, if this is exceeded the controller will limit the power to 290W. For 24V systems this value increases to 580W, reaching up to 1160W in 48V systems.

You can use any model of photovoltaic solar panel satisfying:

• The maximum open circuit voltage will not exceed 95V
• The short-circuit current must be at most 20A. Greater intensity could damage the controller.
• The photovoltaic voltage must be at least 5V more than the voltage of the battery to start, and 1V at least during operation.

Main features

• Battery voltage: automatic detection of 12V / 24V / 48V
• Nominal PV power: 290W (12V), 580W (24V), 1160W (48V)
• Nominal load current: 20A
• Size: 100 x 113 x 60 mm
• Weight: 0.65 kg

See datasheet in DOWNLOAD section for more information.

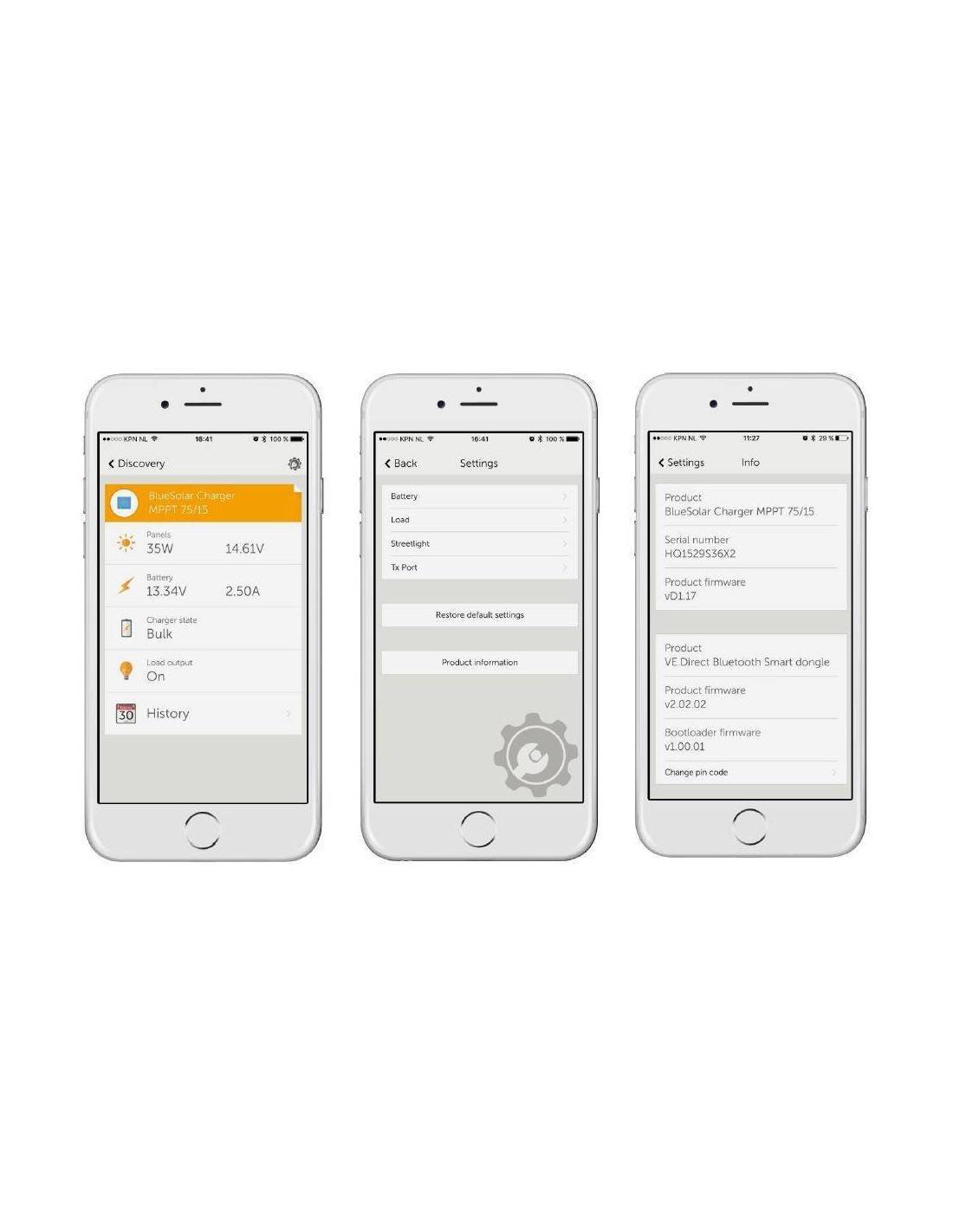

App for mobile phone with VE.Direct port (optional).
