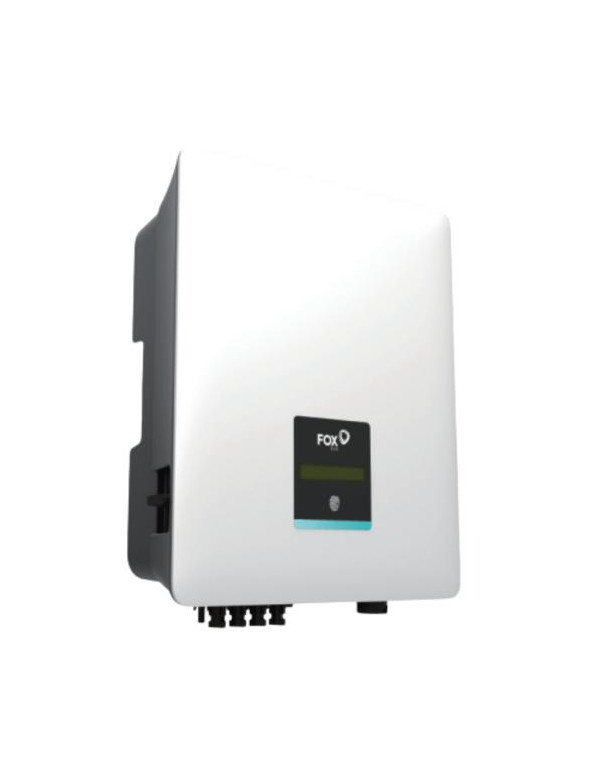

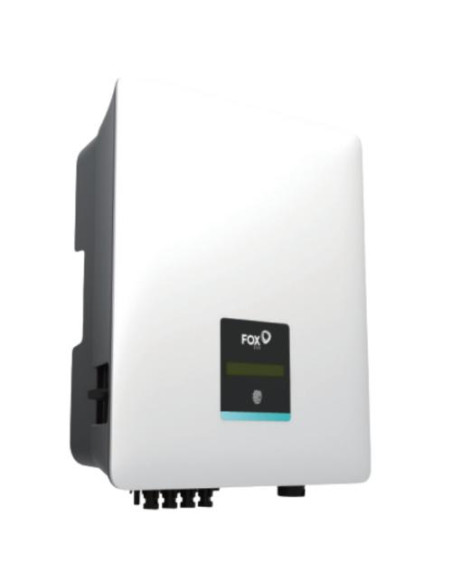

Inverter Three-phase network Fox ESS T6-G3 6000W Double MPPT WIFI

Fox ESS T6-G3: Silent comfort and maximum efficiency for three-phase residential self-consumption

Equip a house or a small residential surface with three-phase network requires inverters that combine a perfectly balanced energy delivery between phases with a minimum visual and acoustic impact. The inverter Three-phase Fox ESS T6-G3 of 6KW resolves this equation through an internal architecture without the latest generation transformer that raises European efficiency up to the 97.80%. Thanks to its optimized electronics, the inverter Reduces the activation threshold to Solo 140v, getting the series Monocrystalline solar Electricity will begin to pour the domestic network with the first rays of light in the morning and endure its operation until the sunset, stretching the daily generation curves.

Double Follower MPP Independent: Flexibility without shadows losses

The distribution of the modules in residential covers is usually facing complex geometric challenges, such as two-waters or structures with different inclinations. The Fox ESS T6-G3 eliminates these restrictions by incorporating 2 independent MPPT channels (with configuration of 1 String per follower) that handle identical ranges up 1000v. This independence allows to design two chains of Fully differently (for example, an east-west configuration) without the losses per shading or the least irradiation of one of the orientations affect the least to the yield of the other. Each follower tolerates Entry intensity and up 18th in short, being completely ready for of large cells of the current market.

Silent architecture IP65 and prepared for future storage

One of the great added values of this inverter In the domestic environment is your passive thermal management. By not requiring external mechanical fans to dispel the heat of your 6KW power, the equipment relfing the refrigeration to the natural convection, drastically reducing operating noise below the 30 dB (Completely inaudible on a day-to-day basis) and eliminating the main component prone to faults by accumulation of dust. His robust chassis with IP65 protection index It allows its placement outdoors safely. In addition to having SPD SPD SPD SURVERVES INTEGRATED BUSING AC AND CC, it has technology Upgradeable, which allows you to update the system in the future and add High voltage lithium batteries By means of the Alternate coupling of the brand.

Featured technical characteristics:

• Nominal output power: 6000 W with a maximum apparent output capacity of 6600 VA.

• Maximum recommended power in CC: Admits a field of photovoltaic up 9000 WP.

• Max input tension DC: 1100 V with a balanced nominal voltage of 620 V.

• MPPT operating range: Very broad spectrum of 140 V at 1000 V boot 140 V.

• Maximum current by Tracker: 14 a and a short circuit current limit 18.2.

• Number of maximum power followers: 2 independent MPPT (1 String assigned to each one).

• Energy conversion efficiency: Maximum registered efficiency of the 98.60%.

• System refrigeration: Passive natural convection (without fans) with noise emission less than 30 dB.

• Dimensions and weight of the chassis: Compact dimensions of 370 x 480 x 183.5 mm and a net weight of 17 kg.

• Electrical Safety: Dischargers SPD Type II in CC and CA, Residual current monitoring and anti-island.

• Connectivity and communications: Module WiFi Removable included for remote monitoring in Foxcloud V2.0.

Frequently asked questions (FAQ):

1. Can residential batteries be connected directly to inverter Fox ESS T6-G3?

Not directly. The T6-G3 is a inverter of connection to pure network (on-grid). However, it includes the function Upgradeable, which means that the system is fully prepared to become a storage assembly in the future by adding a battery charger coupled in Alternating Current (AC) of Fox ESS.

2. Why is it important that a inverter 6KW have natural convection cooling?

In the lack of external fans to cool the equipment, mechanical noise is eliminated, achieving a function below 30 dB. This is ideal for domestic installations where the inverter It is located near inhabited areas, as well as reducing technical maintenance as there are no moving parts exposed to wear or dust.

3. How does the double MPPT help if I have chimneys or partial shadows on the roof?

When having 2 independent MPPT, You can group the solar plates that receive shadows in a separate series of those that are completely clean. In this way, the performance drop of an STRING affected by a transitory shadow will not drag or penalize the production of the string that is full sun.

4. Can I limit the injection to the electrical network to meet the zero pouring regulations?

Yes. To manage power control and activate the zero pouring option (or zero injection), the complementary installation of Smart measuring vatimeters compatible with Fox ESS, which communicate with the inverter To regulate production in real time based on the demand for housing.

5. What factory guarantee does this inverter three-phase?

Fox ESS offers standardly a wide guarantee of 10 years for its range of inverters From the T series (G3), reflecting the confidence of the manufacturer in the durability of its internal components and its passive dissipation architecture without fans.
