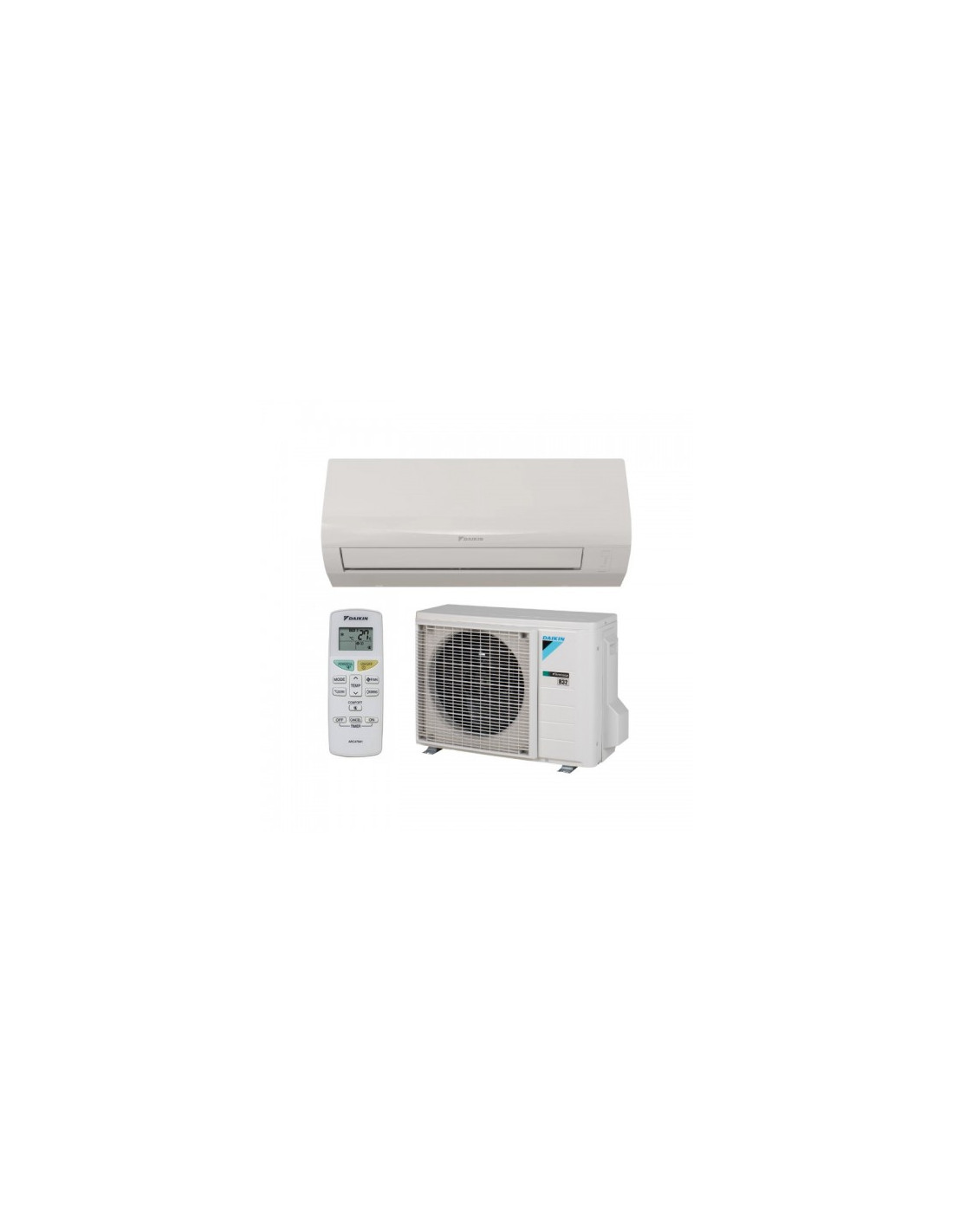

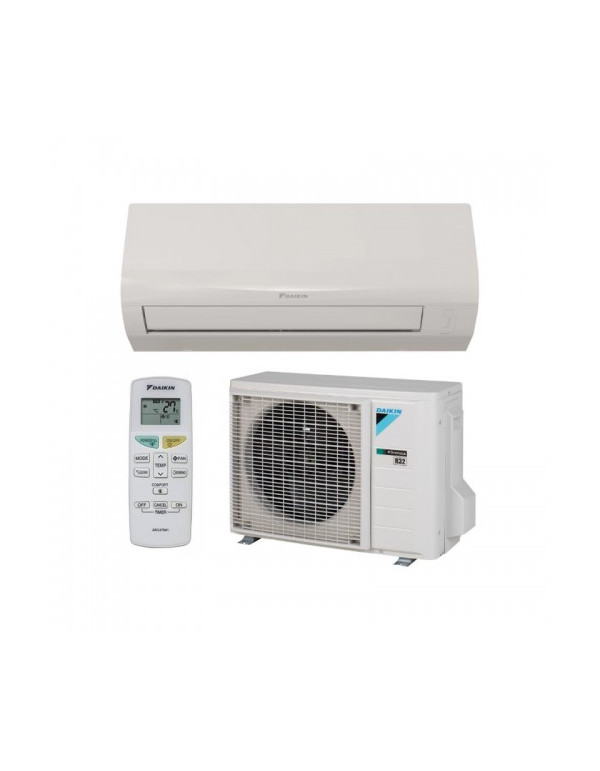

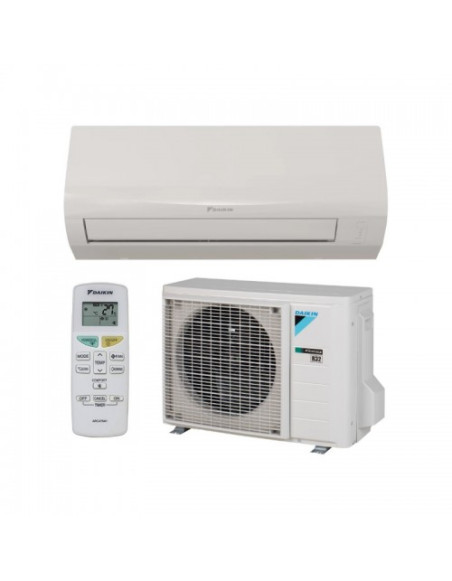

Air conditioning Daikin Sensira TXF35F
Air conditioning Daikin Sensira TXF35F

Air conditioning Daikin Sensira TXF35F

TXF35F
€715.11
Tax included

The air conditioning Daikin Sensira TXF35F is a split wall set Inverter with heat pump, formed by the indoor unit Ftxf35f and the outside Rxf35f, who works with the ecological refrigerant A-32. Reaches a Nominal capacity in refrigeration of 3.300W (range 1.300-3.800Wand in 3.500W heating (range 1.300-4.400W), with Energy label A ++ cold and +++ in heat, a Seer of 6.50 and a SCOP of 5.26 In warm climate (4.20 in average climate). The compressor Swing of the outdoor unit allows a very silent performance from 20dba in the indoor unit, with a Annual seasonal consumption of only 188KWh in refrigeration and 867KWh in heating. Incorporates single-phase feed 220v, gas connections 6.4mm and 9.5mm, and a joint weight of 32,5kg Between both units inner and exterior.



A step more power inside the SENSIRA range

The TXF35F is located just above the TXF25F within the SENSIRA range, offering 800W additional nominal power in refrigeration (3.300W compared to 2,500W) maintaining exactly the same energy efficiency: Seer of 6.50 and labels To ++ / a +++. This makes it the option indicated for slightly larger stays or with a higher thermal load, without sacrificing the low consumption characteristic of technology Inverter of Daikin.

Like the rest of the range, this team especially combines well with a photovoltaic installation: air conditioning the housing with the energy generated by your solar It allows to take advantage of the coincidence between the hours of greater solar production and those of the highest refrigeration demand, reducing the actual air conditioning cost during much of the year.

Operating silence without losing power

Despite its greater capacity against the previous model, the TXF35F maintains a minimal sound pressure of 20dba in silent mode, identical to that of TXF25F, thanks to its compressor Swing Low level vibratory. The Acoustic power level of 54dba in the indoor unit and 62dba On the outside it continues to be on discrete values for a team of this power, suitable for installation near bedrooms or rest areas.

R-32 refrigerant of low environmental impact

Like the rest of the SENSIRA range, the TXF35F uses gas A-32, with a Atmospheric heating potential (PCA) of 675, significantly lower than that of refrigerants of previous generations, in addition to requiring a lower gas load (0,55kg) For your air conditioning capacity.

Detailed technical characteristics

Capacity and consumption:

  • REFRIGERATION (min-nom-max): 1.300W - 3.300W - 3.800W
  • Heating (min-nom-max): 1.300W - 3.500W - 4.400W
  • Refrigeration consumption (min-nom-max): 310W - 1.000W - 1.400W
  • Consumption Heating (min-nom-max): 250W - 940W - 1.500W
  • Seer / SCOP Warm / Medium SCOP: 6.50 / 5,26 / 4,20
  • Energy label (refrigeration / heating): A ++ / A +++
  • Refrigeration design load: 3,5kw
  • Loading design Heating (-10 ° C): 2,6kw
  • Seasonal annual energy consumption (refrigeration): 188kwh
  • Seasonal annual energy consumption (heating): 867kwh

Connections and food:

  • Connection of liquid: 6.4mm (1/4 ")
  • Gas connection: 9.5mm (3/8 ")
  • Power supply: 220V single-phase
  • Number of interconnection yarns: 3 + Earth
  • Pipe length (min-max): 1.5 ~ 20m
  • Maximum level difference: 12m
  • Additional refrigerant load: 0.02kg / m (for pipes above 10m)

Indoor unit FTXF35F:

  • Air flow (High / NOM / Low / Silent): 11.5 / 8/6,4 / 4.4 m³ / min
  • Fan speeds: 5 + automatic + silent
  • Dimensions (X an X FO): 286 x 770 x 225mm
  • Weight: 8,5kg
  • Refrigeration sound pressure (A / N / B / SB): 43/34/27 / 20DBA
  • Sound pressure Heating (A / N / B / SB): 40/35/29 / 21DBA
  • Acoustic power level: 54dba

Outdoor unit RXF35F:

  • Type of compressor: Swing
  • Coolant: R-32, 0.55kg (0.37 TCO2EQ, PCA 675)
  • Dimensions (X an X FO): 556 x 740 x 343mm
  • Weight: 24kg
  • Sound pressure Refrigeration: 48dba
  • Sound pressure Heating: 48dba
  • Acoustic power level: 62dba

Frequently Asked Questions (FAQ)

1. What surface can the TXF35F climate?
With a Nominal power of 3,300W cold, This model is indicated for medium-sized stays, typically between 30-35m² according to isolation and orientation.

2. How is the TXF25F model?
Offers a Upper nominal power (3.300W compared to 2,500W in refrigeration) maintaining the same energy efficiency (SEER 6.50, Class A ++ / A +++), being indicated for somewhat larger stays.

3. Is it a silent team?
Yes, thanks to your compressor Swing, you can reach a sound pressure of solo 20dba in silent mode of the indoor unit.

4. What refrigerant gas do you use?
Employ Gas A-32, with lower atmospheric heating potential than previous refrigerants, and a reduced load of 0,55kg.

5. Can I feed it with solar energy from my photovoltaic installation?
Yes, as a standard 220V single-phase electrical equipment, you can feed on your energy from your solar, optimizing savings in the hours of greater production. Consult more technical content in the Blog Tienda Solar.
