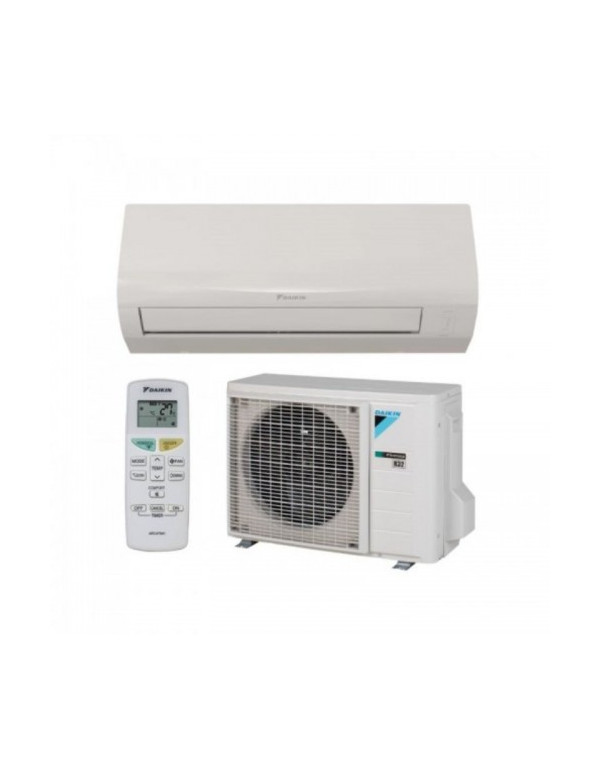

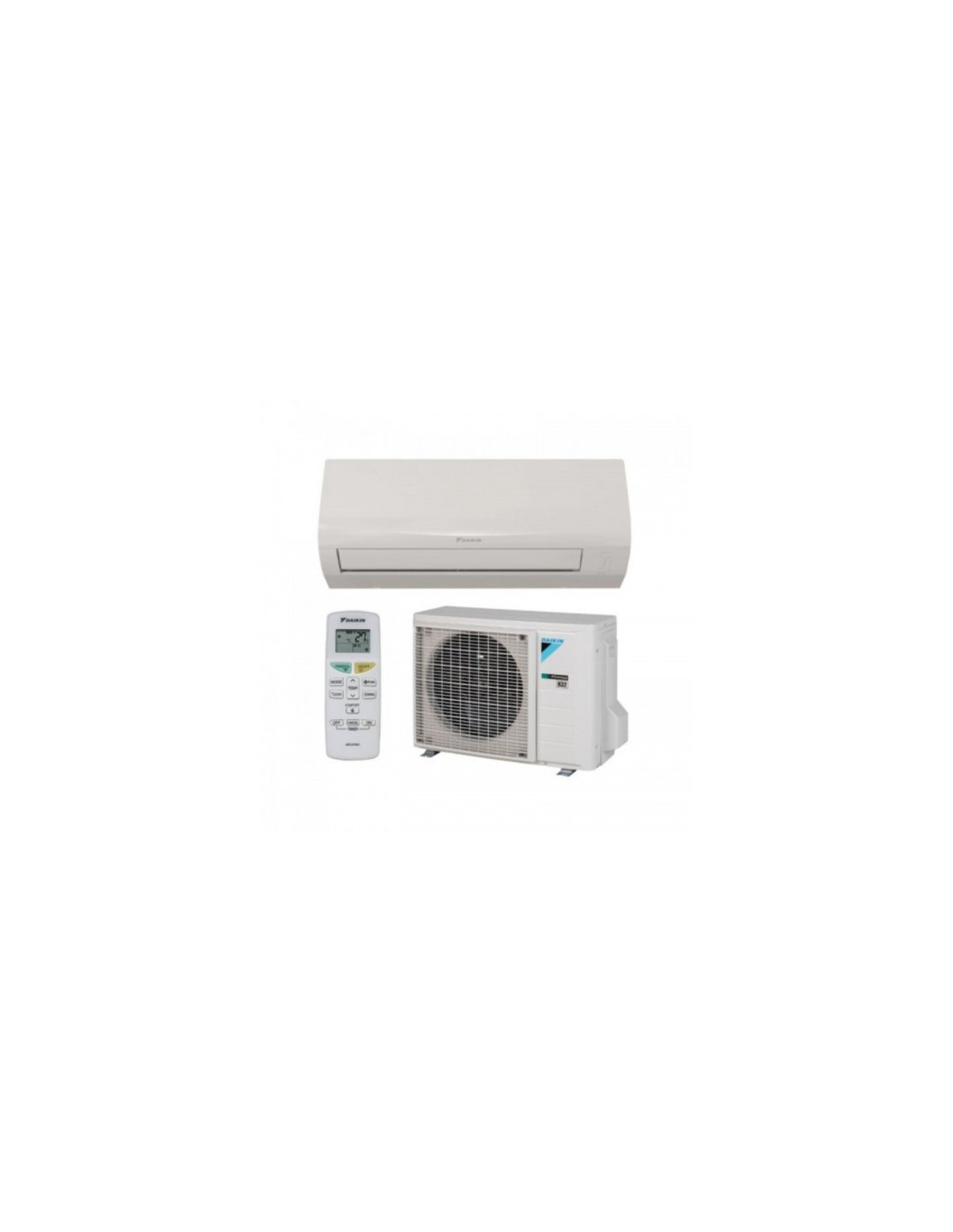

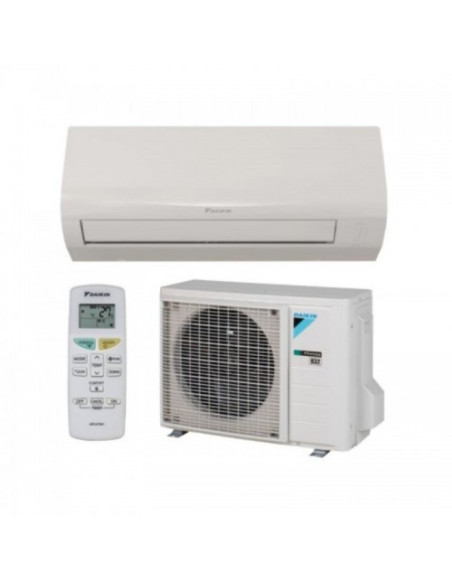

Air conditioning Daikin Sensira TXF25F

First level energy efficiency

The TXF25F stands out for its A ++ energy label in refrigeration and a +++ in heating, backed by a Seer of 6.50 and a 5.22 SCOP In warm climate (4.20 in medium climate), values that place this equipment among the most efficient in its category. Its technology Inverter Adjusts the power of the compressor continuously according to the real demand of the home, avoiding the characteristic peaks of the traditional ON / OFF equipment and translated into a Seasonal consumption of only 135KWh a year in refrigeration.

This efficiency is combined especially well with an installation of photovoltaic self-consumption: when air-conditioned the housing with energy generated by your own solar, the actual cost of operation of the equipment can be significantly reduced, especially in the central hours of the day when the greater solar production coincides with the highest cooling demand.

Compressor Swing: Silence and stability

The compressor Swing of the outer unit RXF25F offers remarkably silent operation, with a sound pressure that can go down to 20dba In silent mode of the indoor unit, comparable to the whisper of the leaves of a tree. The Acoustic power level of 54dba in the indoor unit and 60dba On the outside, it guarantees discrete operation, suitable for both bedrooms and facades near facades near rest areas.

Refrigerant R-32: Lower environmental impact

The use of refrigerant gas A-32 Reduces the atmospheric heating potential (PcA of 675) Faced with previous refrigerants, in addition to requiring a lower gas load for the same air conditioning capacity, which also facilitates the tasks of installation and maintenance of the long-term equipment.

Detailed technical characteristics

Capacity and consumption:

• REFRIGERATION (min-nom-max): 1.300W - 2.500W - 2.800W
• Heating (min-nom-max): 1.300W - 2.800W - 3.700W
• Refrigeration consumption (min-nom-max): 310W - 772W - 1.050W
• Consumption Heating (min-nom-max): 250W - 750W - 1.110W
• Seer / SCOP Warm / Medium SCOP: 6.50 / 5,22 / 4,20
• Energy label (refrigeration / heating): A ++ / A +++
• Refrigeration design load: 2,5kw
• Loading design Heating (-10 ° C): 2,4kw
• Seasonal annual energy consumption (refrigeration): 135kwh
• Seasonal annual energy consumption (heating): 801kwh

Connections and food:

• Connection of liquid: 6.4mm (1/4 ")
• Gas connection: 9.5mm (3/8 ")
• Power supply: 220V single-phase
• Number of interconnection yarns: 3 + Earth
• Pipe length (min-max): 1.5 ~ 20m
• Maximum level difference: 12m
• Additional refrigerant load: 0.02kg / m (for pipes above 10m)

Indoor unit FTXF25F:

• Air flow (High / NOM / Low / Silent): 10/8 / 6.2 / 4.3 m³ / min
• Fan speeds: 5 + automatic + silent
• Dimensions (X an X FO): 286 x 770 x 225mm
• Weight: 8kg
• Refrigeration sound pressure (A / N / B / SB): 40/33 / 26 / 20DBA
• Sound pressure Heating (A / N / B / SB): 40/34/28 / 21DBA
• Acoustic power level: 54dba

Outdoor unit RXF25F:

• Type of compressor: Swing
• Coolant: R-32, 0.42kg (0.28 TCO2EQ, PCA 675)
• Dimensions (X an X FO): 556 x 740 x 343mm
• Weight: 24kg
• Sound pressure Refrigeration: 46dba
• Sound pressure Heating: 47dba
• Acoustic power level: 60dba

Frequently Asked Questions (FAQ)

1. What surface can the TXF25F air condition?
With a Nominal power of 2,500W cold, This model is indicated for rooms or rooms of reduced size, typically up to 25-30m² according to isolation and orientation.

2. Is it a silent team?
Yes, thanks to your compressor Swing and silent mode, can achieve a sound pressure of solo 20dba In the indoor unit, one of the lowest levels of the market.

3. What refrigerant gas do you use?
Employ Gas A-32, a refrigerant with lower atmospheric heating potential than other previous gases, increasingly standard in new generation equipment.

4. Can I feed it with solar energy from my photovoltaic installation?
Yes, being a 220V standard single-phase electrical computer, you can feed on the energy generated by your solar, optimizing savings especially in the hours of greater solar production.

5. What maximum tubing length admits between indoor and external unit?
Admits 20 meters of pipe and a maximum level difference of 12 meters Between both units. Consult more technical content in the Blog Tienda Solar.
